SPECIFICATIONS

Brand Name: NONE

Choice: yes

High-concerned chemical: none

Origin: Mainland China

【1】Product Information

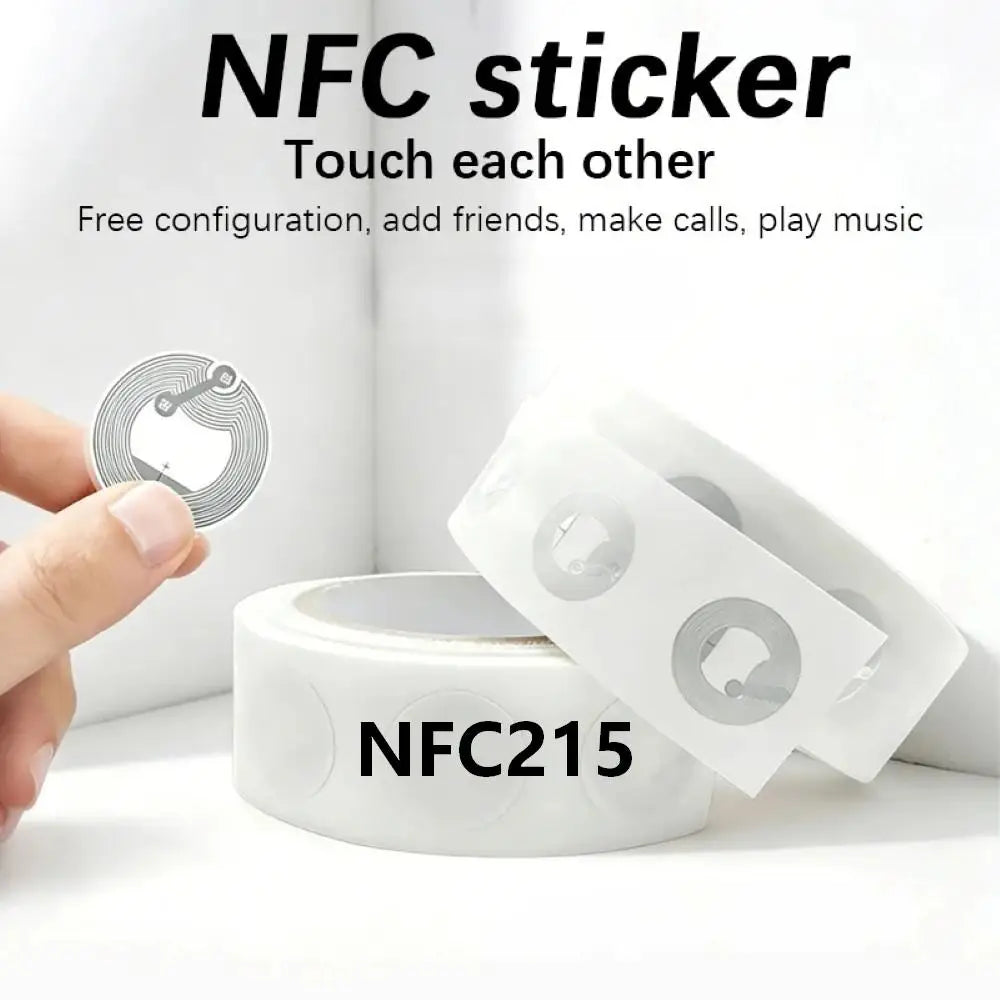

Product Name: NFC Chip Label

Operating Temperature: -20 to 55 degrees Celsius, 90% humidity

Storage Capacity ≈   504bytes（215）

Erasureable Times: 100,000+ times

Data Storage Time: > 10 years

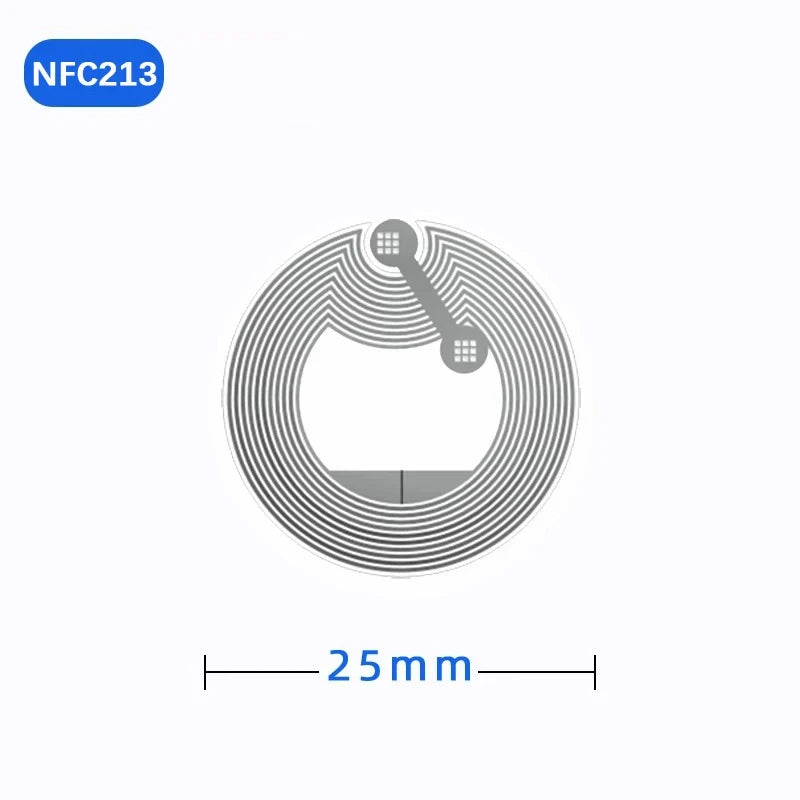

Chip Diameter: 25mm / 0.984 inches

Main Applications: Information storage, product labeling, music wall configuration, Wi-Fi password configuration signature, etc...

【2】 Instructions for Use

1: You need to download a software that can support the NFC writing function (you can search for it on the Internet in your country).

2: Open the software and select the content you want to write based on the prompts (such as text, URL, phone number, business card, Bluetooth, Wi-Fi, application configuration, data, etc.).

3: Take out an NFC chip from the storage box.

4: Touch the chip to the NFC recognition area of your smart device (please touch it accurately. Incorrect touch may result in a failed recognition).

5: After the chip is recognized successfully, write in the content you need.

(Note: During the writing process, if you move halfway, it will cause a writing failure.)

6: Tear off the back sticker of the successfully written chip and stick it to the desired location.

【3】Notes

Your reading and writing device must support NFC functionality (it is recommended to use an APP software on mobile devices that can read and write to NFC cards). Otherwise, it cannot be used. Please do not use IC/ID readers. This device can only partially read but cannot write.

If there is any inconsistency with the above precautions, please do not place the order. Otherwise, you will not be able to use it.

After understanding the above precautions, if there are no issues, you can place the order and use it normally.
